Payloads
In OpenBAS, payloads are key components used to build and customize injects. They allow you to enrich your scenarios with dynamic, reusable content tailored to various attack simulations.
Payloads List View
The Payloads view displays a list of all available payloads in the platform. Each entry includes the following columns:
| Column | Description |
|---|---|
| Type | The kind of payload (e.g., Command Line, Executable, File Drop, DNS Resolution). |
| Name | The name assigned to the payload. |
| Platforms | The platforms the payload supports (e.g., Windows, Linux, macOS). |
| Description | A brief explanation of what the payload does. |
| Tags | Tags to help categorize and search for payloads. |
| Source | The origin of the payload (see Payload Sources). |
| Status | The reliability or lifecycle state of the payload (see Payload Status Logic). |
| Updated | The last modification date. |
Payload Status Logic
Payloads can have one of the following statuses:
-
Verified ✅
OpenBAS has tested the payload and confirmed it works as expected. -
Unverified ⚠️
The payload has not been tested by OpenBAS. It may or may not work. -
Deprecated ❌
The original source has marked the payload as deprecated. It’s kept for reference, but functionality is not guaranteed.
Payload Sources
Each payload has a source indicating its origin:
-
Community 🌍
Submitted by external users. May vary in quality or coverage. -
Manual ✍️
Custom payload created within your OpenBAS instance. -
Filigran 📦
From the official Filigran payload library, curated and maintained by Filigran.
Create a Payload
To create a new payload, follow these steps:
- Click the "+" button in the bottom right corner of the screen.

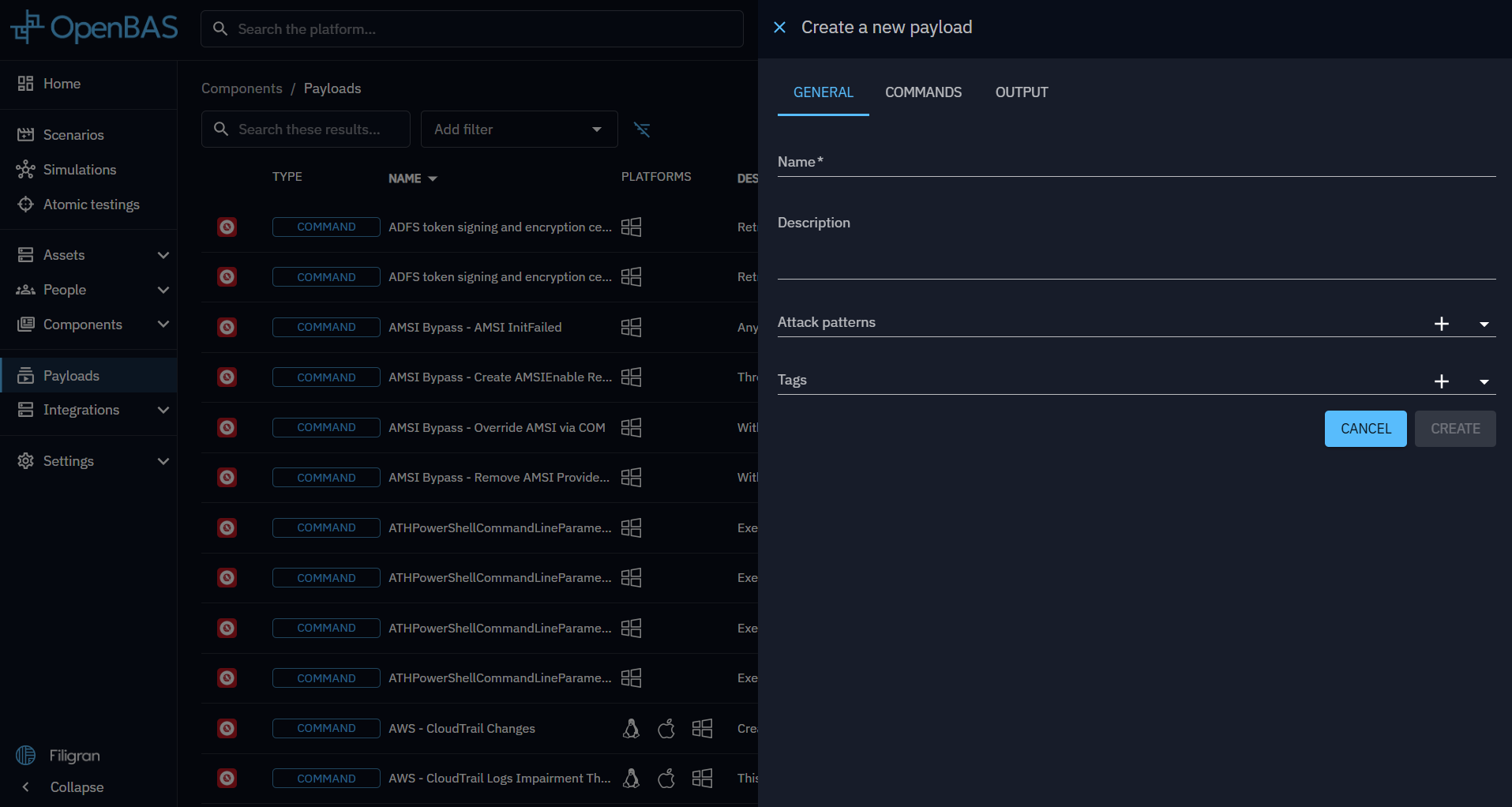

- In the General Information tab, fill in the required details about the payload.
2.1. Assign a name to your new payload and provide additional general details such as description, attack patterns and tags.

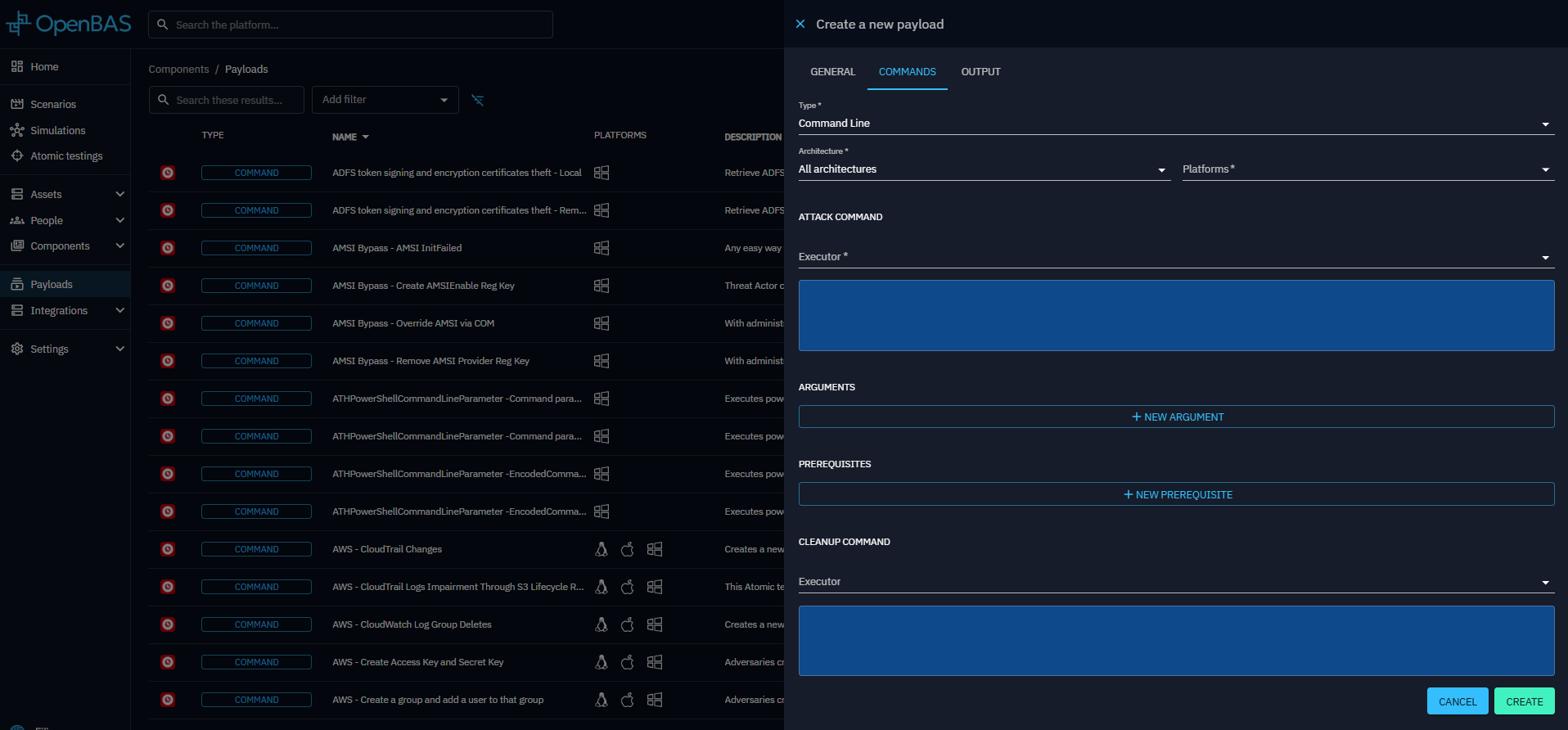

- In the Commands tab:
3.1. Choose a payload type based on your needs:- Command Line: Executes a command using an executor (e.g., PowerShell, Bash, etc.).
- Executable: Runs an executable file on an asset.
- File Drop: Drops a file onto an asset.
- DNS Resolution: Resolves a hostname into IP addresses.
3.2. Specify the platform and provide additional command details, such as arguments and prerequisites.
3.3. Specify a cleanup executor and cleanup command to remove any remnants from execution on the asset.

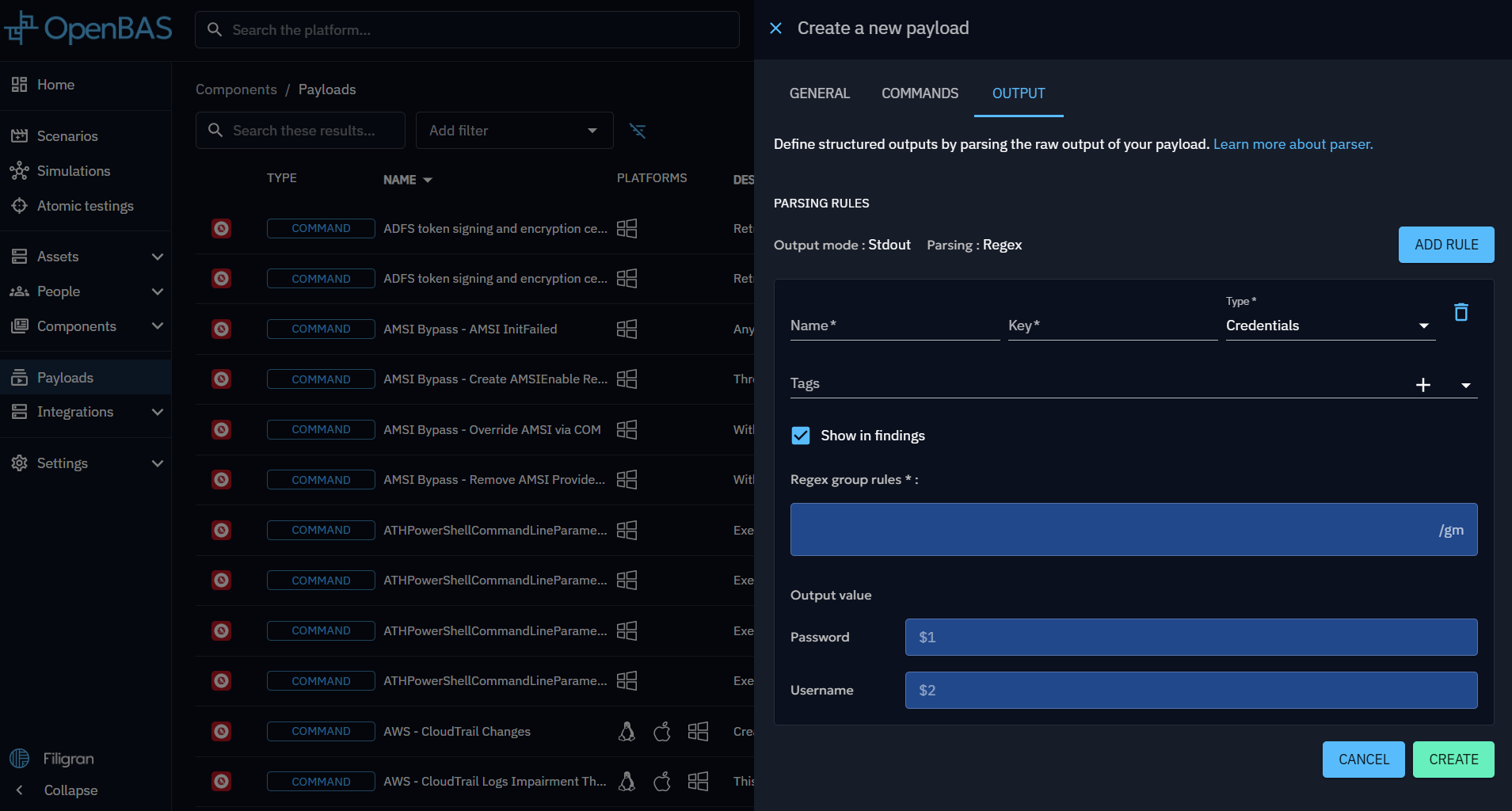

- In the Output Parsers tab (optional):
4.1. Add Output Parsers to process the raw output of your execution.
4.2. Specify whether to generate Findings from the output.
Once completed, your new payload will appear in the payload list.
General Payload properties
| Property | Description |
|---|---|
| Name | Payload name |
| Description | Payload description |
| Attack patterns | Command-related attack patterns |
| Tags | Tags |
Commands Common Payload properties
| Property | Description |
|---|---|
| Type | Type of payload such as Command Line, Executable, File Drop or Dns Resolution |
| Architecture | Architecture in which the command can be executed (x86_64, arm64, all architectures) |
| Platforms | Compatible platforms (ex. Windows, Linux, MacOS) |
| Prerequisites | Prerequisites required to execute the command |
| Cleanup executor | Executor for cleaning commands |
| Cleanup command | Cleanup command to remove or reset changes made |
| Arguments | Arguments for the cleanup, prerequisites and potential command line |
Prerequisites in depth
| Property | Description |
|---|---|
| Command executor | Executor for prerequisite |
| Check command | Verifies if specific condition are met |
| Get command | Run command if check command failed |
Additional Payload properties by type
Command Line
This payload type executes commands directly on the command line interface (CLI) of the target system (e.g., Windows Command Prompt, PowerShell, Linux Shell).
Command Line payloads are used for remote command execution to simulate common attacker actions like privilege escalation or data exfiltration.
| Property | Description |
|---|---|
| Command executor | Executor for command to execute |
| Command | Command to execute |
Executable
An Executable payload involves delivering a binary file (such as .exe on Windows or ELF on Linux) that the system runs as an independent process.
Executables can perform a variety of functions, from establishing a backdoor to running complex scripts (mimic malware).
| Property | Description |
|---|---|
| Executable file | File to execute |
File Drop
File Drop payloads are designed to deliver files (e.g., scripts, documents, binaries) to the target system without immediately executing them.
The goal is typically to simulate scenarios where attackers place files in specific locations for later use, either manually or by another process.
| Property | Description |
|---|---|
| File to drop | File to drop |

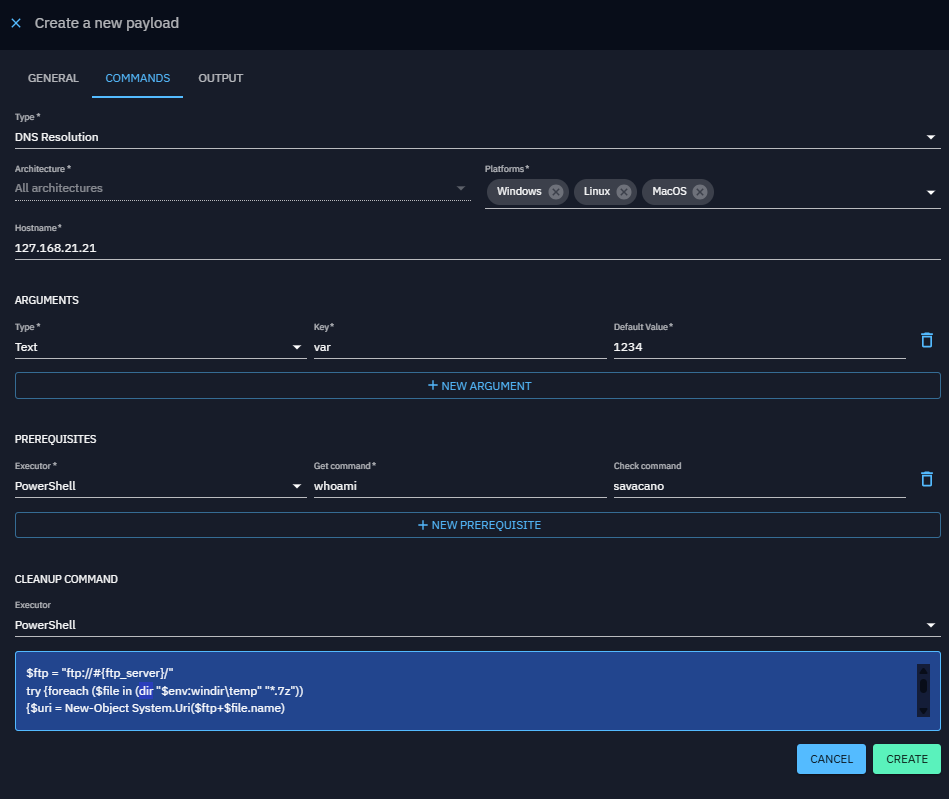

DNS Resolution
DNS resolution payloads attempts to resolve hostnames to associated IP address(es).
The goal of DNS resolution is to test if specific hostnames resolve to IP addresses correctly, helping assess network accessibility, detect issues, and simulate potential attacker behavior.
| Property | Description |
|---|---|
| Hostnames | Hostname list to resolve |
Output Parsers
Output Parsers allows processing the raw output from an execution. You can define rules to extract specific data from the output and link it to variables.
These variables can then be used for chaining injects.
Currently, Output Parsers support:
- Output Mode: StdOut
- Parsing Type: REGEX
If the extracted data is compatible with a Finding, you can enable "Show in Findings" option.

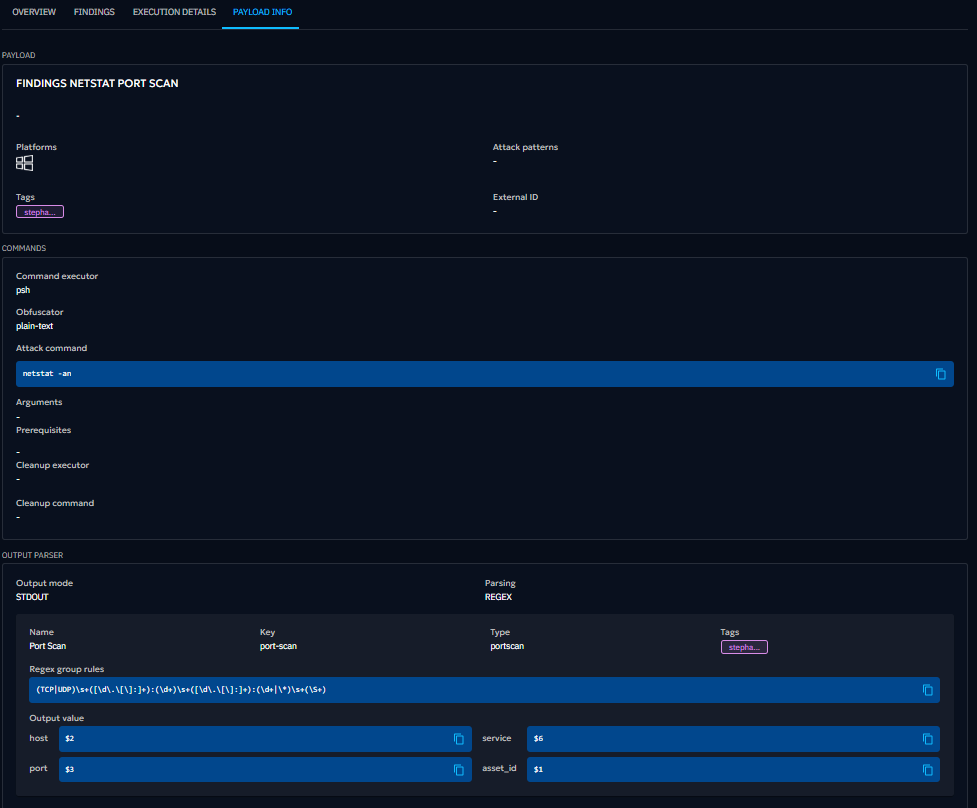

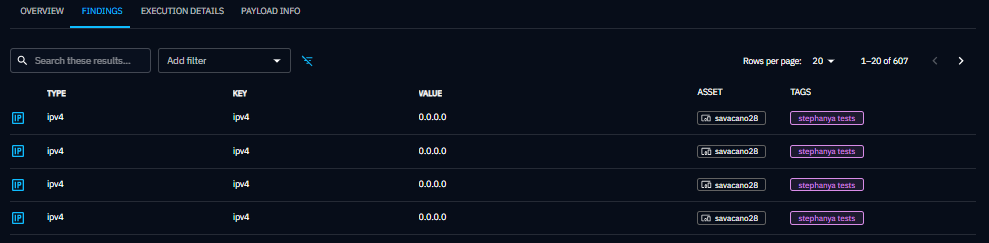

The findings results and the details of the output parser will also be available in the Findings and Payload Info tabs of the Atomic Testing Detail View.
Defining a Rule
When adding a rule, the following properties must be defined:
| Property | Description | Mandatory |
|---|---|---|
| Name | The name of the rule. | Yes |
| Key | A unique key identifier. | Yes |
| Type | The data type being extracted (e.g., Text, Number, Port, IPv4, IPv6, Port Scan, Credentials). | Yes |
| Tags | No | |
| Regex | A regular expression (REGEX) to extract data from the raw output. Supports capturing groups and line anchors (e.g., ^ for start of line). Currently, We use these flags by default: Pattern.MULTILINE, Pattern.CASE_INSENSITIVE, Pattern.UNICODE_CHARACTER_CLASS. | Yes |
| Output Value | Map each regex capture group to the corresponding fields based on the selected type. | Yes |
Output Value Mapping
Depending on the Type, a specific number of fields can be extracted using the group index from the regex :
| Type | Fields | Output format |
|---|---|---|
| Port Scan | host, port, service | host:port (service) |
| Credentials | username, password | username:password |
| Cve | host, id, severity | host:id (severity) |
| Other | single extracted value | single value |
The group index must start with $ to differentiate between multiple capture groups.
Example: Extracting Elements with Regex for a Port Scan Rule

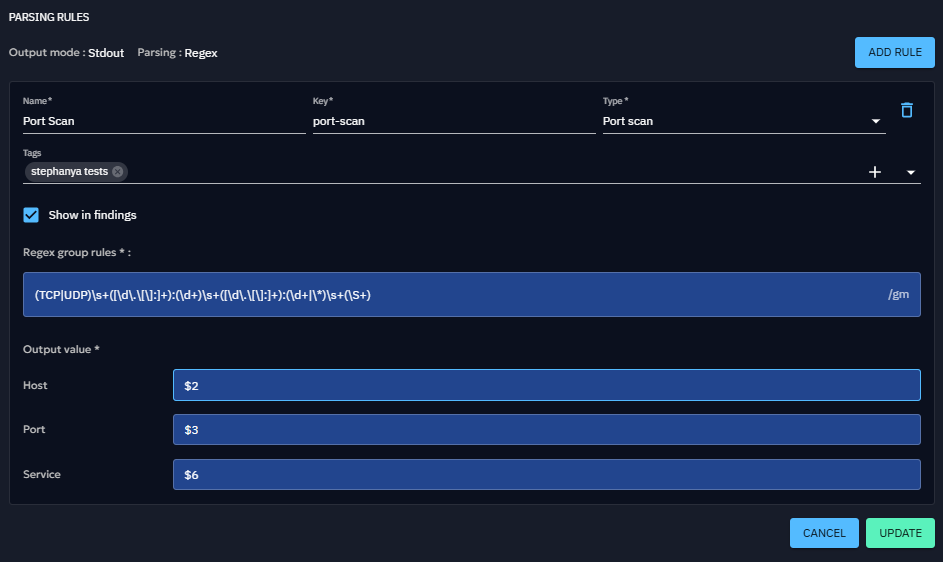

In the next image, you can see a rule named Port Scan (port_scan) with the type Port Scan. This rule includes a
regex pattern(^\\s*(TCP|UDP)\\s+([\\d\\.]+|\\*)?:?(\\d+)\\s+\\S+\\s+(\\S+)), which defines four capture groups
you could extract from the raw output.
You can define the group used to build the output in the Output Value section. For this example, each field is mapped to a specific capture group:
- Host (
$2) - Port (
$3) - Service (
$6)

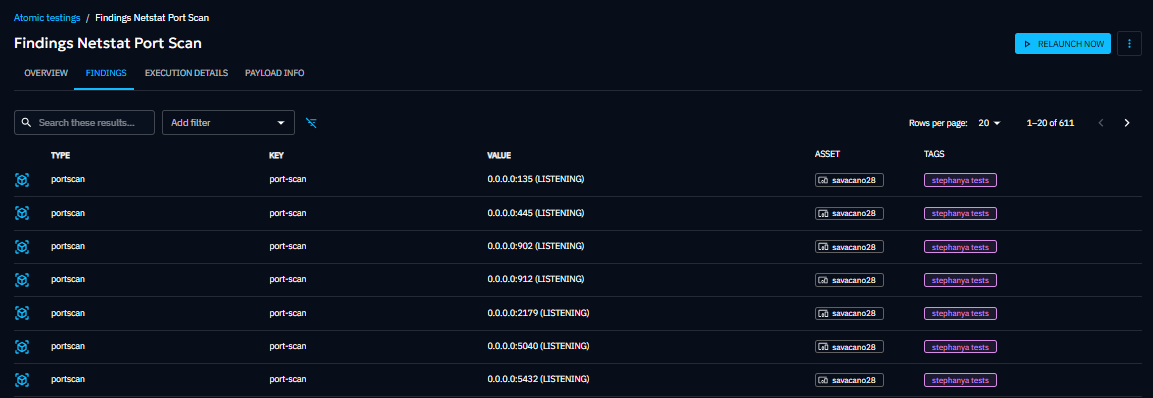

The finding generated would be:
If you want to combine multiple groups in a field, you have to concatenate them like $n$m (placing the group
references next to each other). The final value of the field will be a composition of these groups.

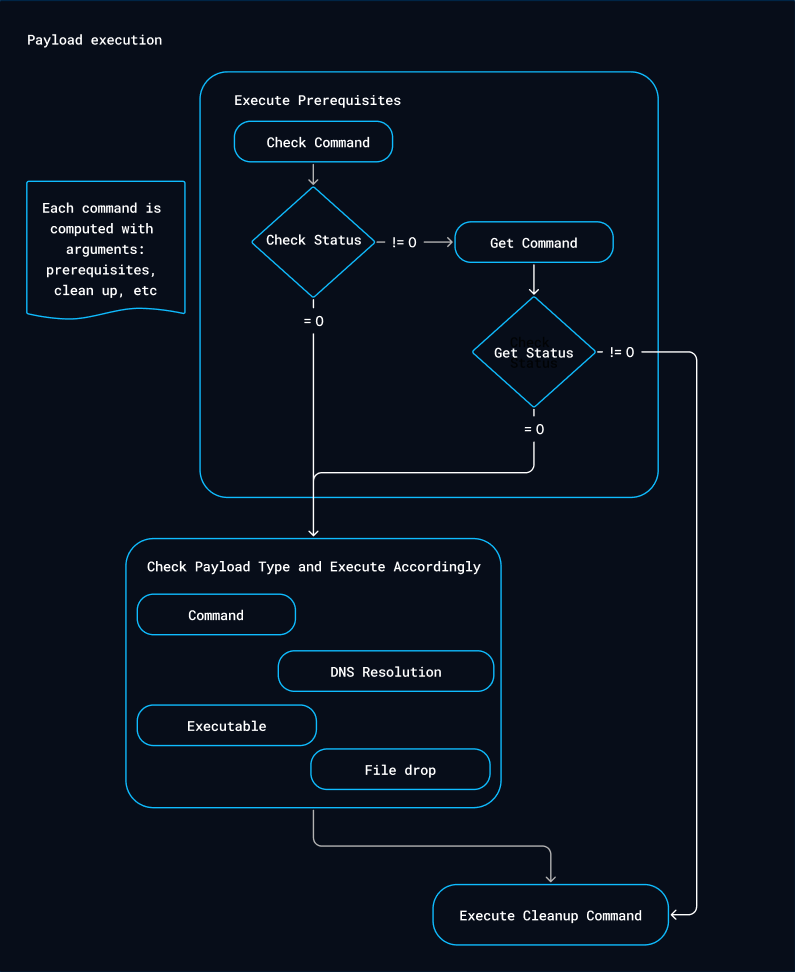

Payload execution workflow

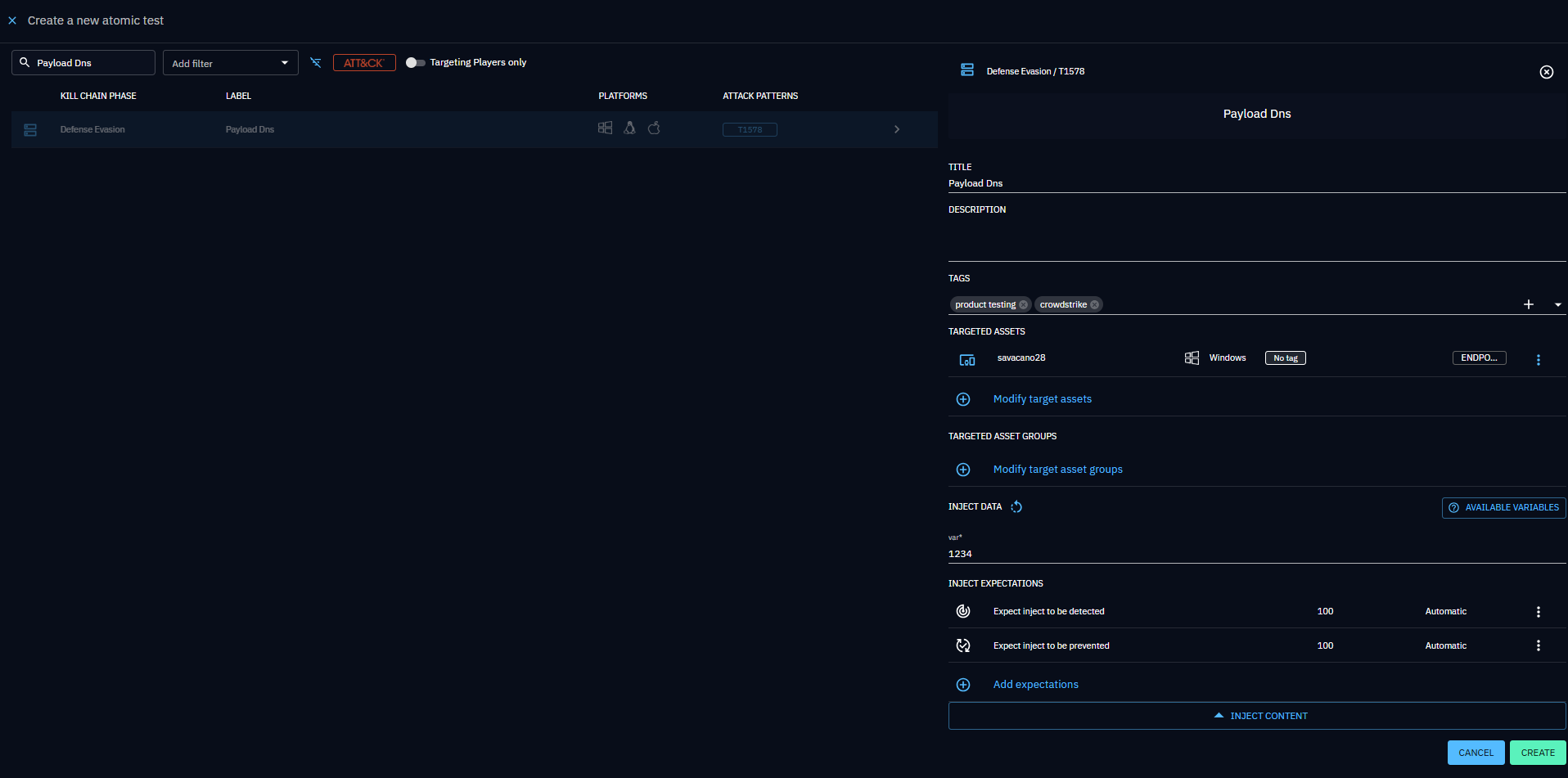

Use a Payload
After creation, a new inject type will automatically appear in the inject types list if the implant you're using supports it (the OpenBAS Implant does).
