In OpenBAS, you can filter data to focus on or display information with specific attributes.
Filters usages
Dynamic filters
Dynamic filters allow you to filter the UI view based on the attributes present in the data, such as the list of
scenarios or simulations.
These filters are not stored in the database. However, they remain persistent on the frontend of the platform. Your web
browser saves the filters you set in different areas of the platform in local storage, allowing you to retrieve them
when you return to the same view. This way, you can continue working from where you left off.
Additionally, the filters applied in a view are saved as URL parameters, enabling you to save and share links to these
filtered views.

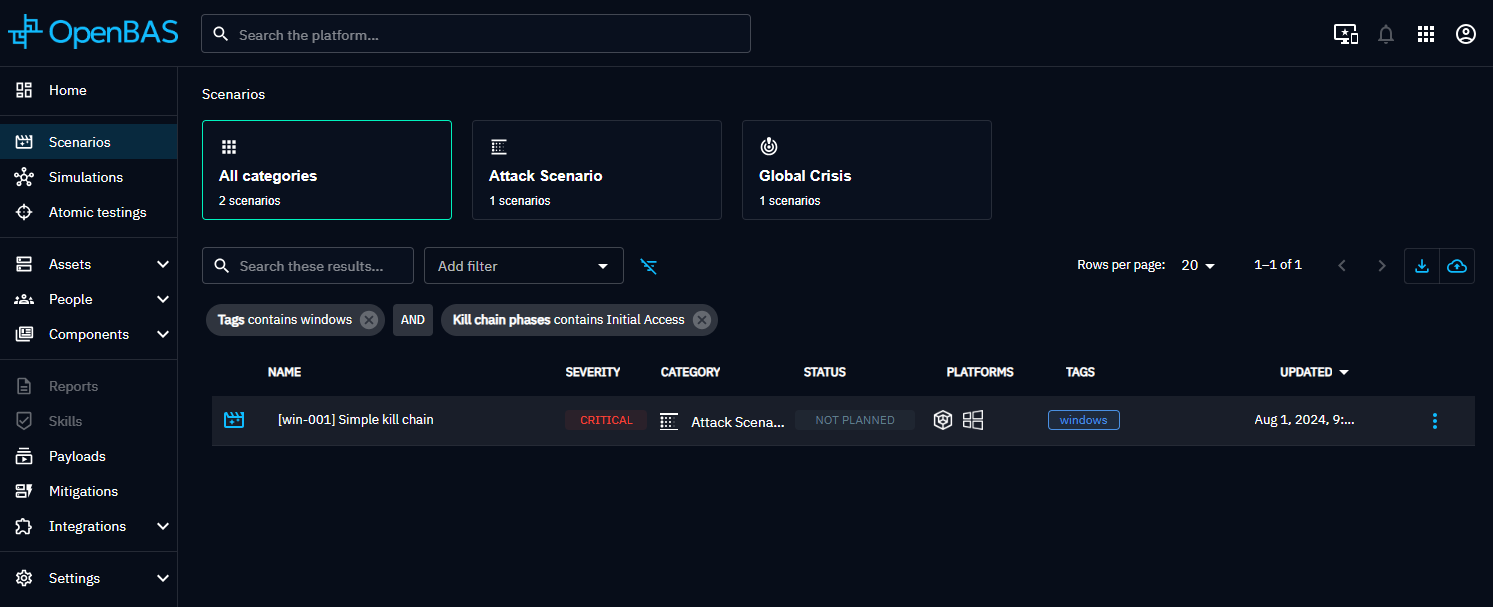

Create a filter
To create a filter, add every key you need using the 'Add filter' select box. It will give you the possible attributes
on which you can filter in the current view.

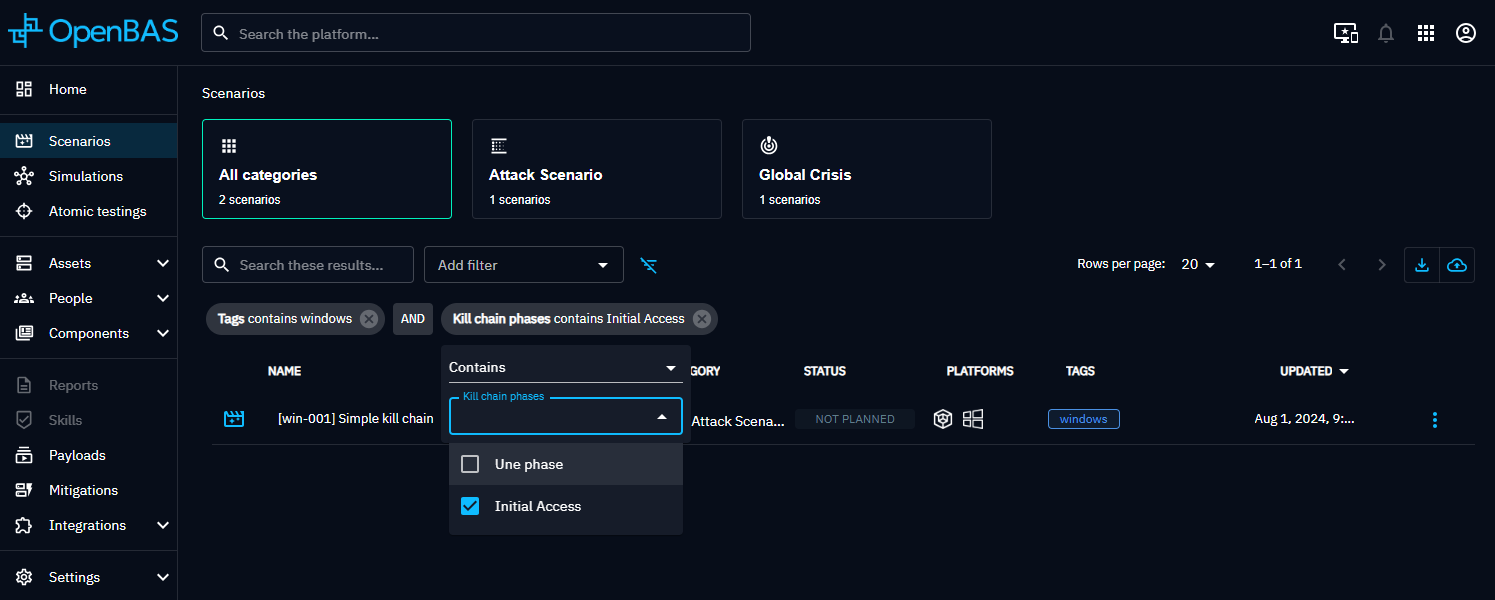

A grey box appears and allows to select:
the operator to use, and
the values to compare (if the operator is not "empty" or "not empty").
You can add as many filters as you need.

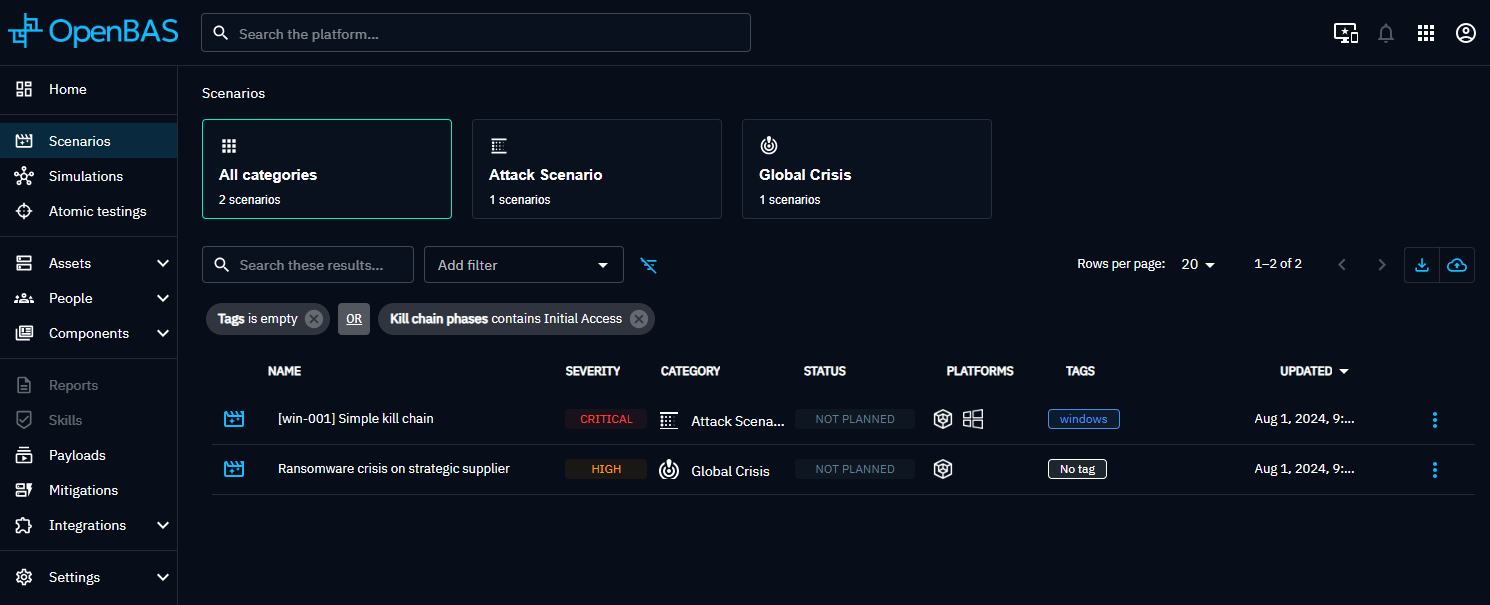

The boolean modes (and/or) are global (between every attribute filters) and can be switched with a single
click, changing the logic of your filtering.
Filters format
The OpenBAS platform uses a filter format called FilterGroup. The FilterGroup model enables
to do complex filters imbrication with different boolean operators, which extends greatly the filtering capabilities in
every part of the platform.
Structure
The format can be described as below:
{"filterGroup":{"mode":"and",// or "or""filters":[{"key":"name","mode":"or",// or "and""values":["value1","value2"],"operator":"contains"// or "not_contains", "eq", "not_eq", "starts_with", "not_starts_with",// "empty", "not_empty"}]}}
Properties
In a given filter group, the mode (and or or) represents the boolean operation between the different filters
and filterGroups arrays. The filters and filterGroups arrays are composed of objects of type Filter and
FilterGroup.
The Filter has 4 properties:
a key, representing the kind of data we want to target (example: tags to filter on tags or name to
filter on the data's name),
an array of values, representing the values we want to compare to,
an operator representing the operation we want to apply between the key and the values,
a mode (and or or) to apply between the values if there are several ones.
Operators
The available operators are:
Value
Meaning
contains
contains
not_contains
not contains
eq
equal
not_eq
different
empty
empty / no value
not_empty
non-empty / any value
In addition, there are operators:
starts_with / not_starts_with, available for searching in short string fields (name, value, title, etc.),
